Documenting the Mitigation Hub Architecture

The Documentation Gap

Projects often grow faster than their documentation, leading to a "tribal knowledge" trap. In our work on the Gyse-ldz/mitigation-hub, we realized that as our reliance on message-driven architecture grew, our onboarding path needed a clearer map. Even simple architectural patterns, like our RabbitMQ integration, were becoming difficult to explain without a centralized point of truth.

The Documentation Strategy

We recently initiated an audit of our primary documentation assets, starting with the README.md file. The goal was simple: turn a stale reference file into a living guide that helps developers understand the flow of data across our mitigation services.

Why Documentation Matters for Message Brokers

RabbitMQ acts as the connective tissue in our system. When services communicate asynchronously, tracing a request lifecycle can be opaque. By documenting the exchange-to-queue bindings, we provide a blueprint that prevents common pitfalls, such as misconfigured routing keys or unacknowledged messages.

The Anatomy of our Update

Our documentation update focused on three key areas:

1. Workflow Visualization: Clearly defining how messages are published and consumed.
2. Environment Requirements: Explicitly stating the dependencies needed to run the mitigation hub locally.
3. Troubleshooting Guide: Providing a checklist for the most common connection errors developers encounter with the message broker.

Standardizing the Flow

To ensure consistency, we adopted a standard pattern for all future service documentation:

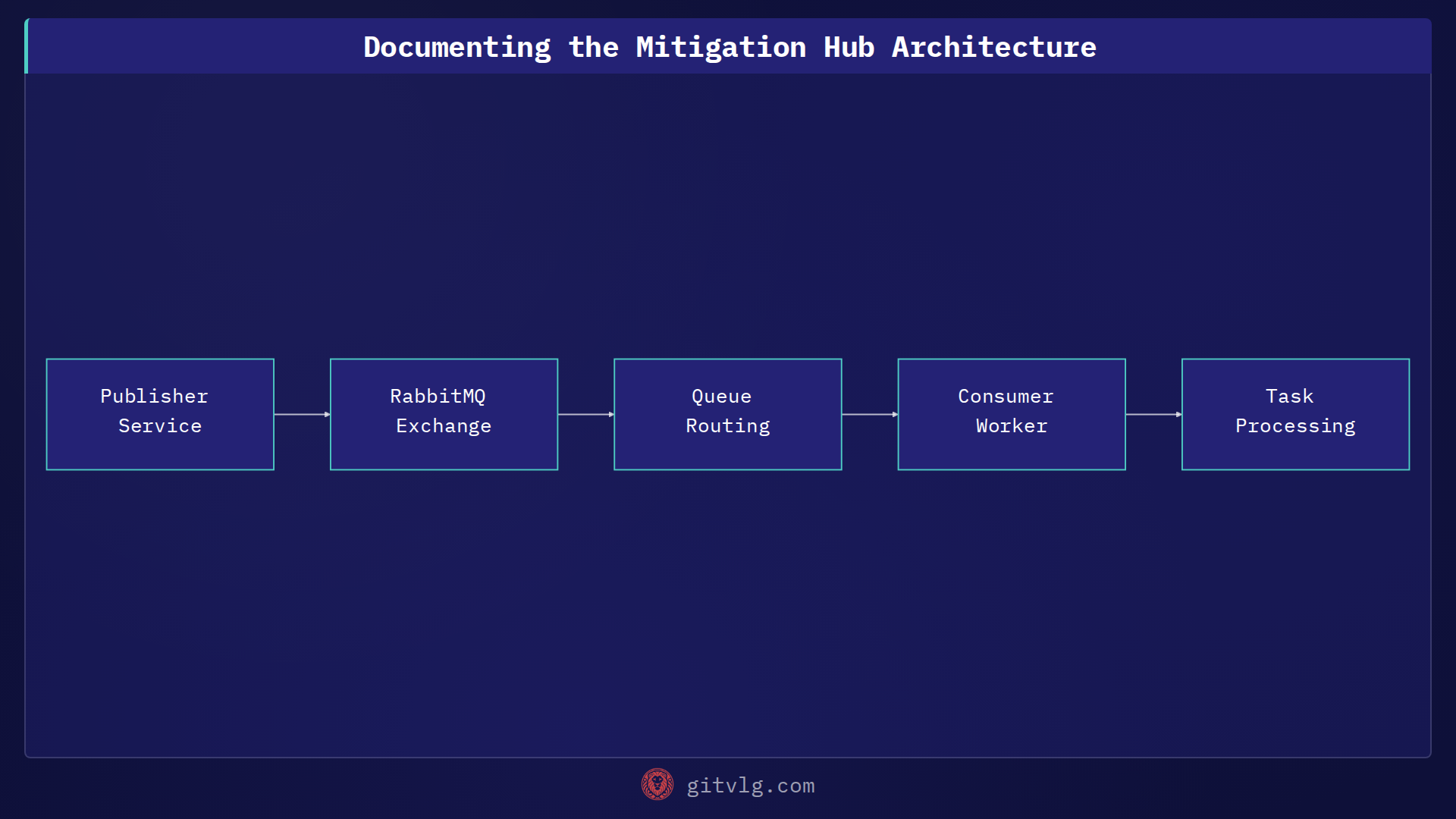

## Service Workflow
1. Producer emits event to exchange.
2. Broker routes to queue.
3. Consumer processes task.
4. Acknowledgement returned to broker.

Final Numbers

Key Insight

Documentation is not just for the next developer; it is for your future self. By maintaining a clean, descriptive repository structure, we reduced the cognitive load required to maintain our RabbitMQ infrastructure.
